Cable assemblies as canonical definitions

Define each cable once. WireHub derives the schematic, build sheet, BOM, continuity spec and drawing from it, the same bytes every time. Self-hosted, free software.

Quick start Docs Config generator GitHub

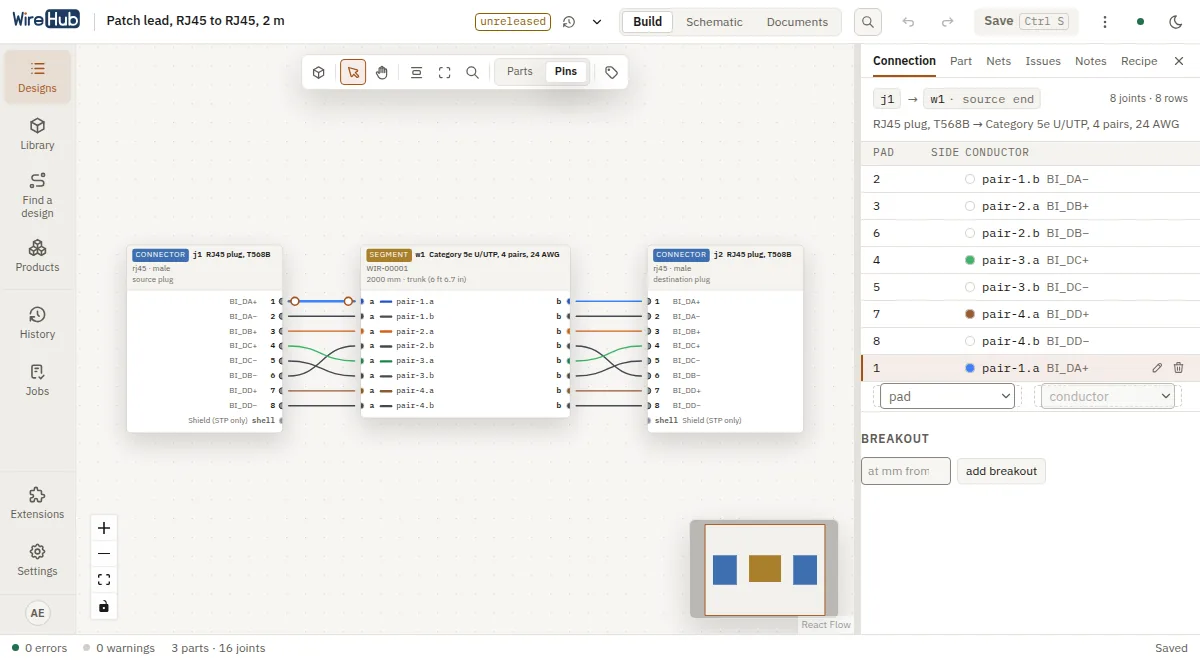

The WireHub canvas: an RJ45 patch lead drawn as two plugs and a Cat 5e segment, with the selected joint open in the inspector

What you get

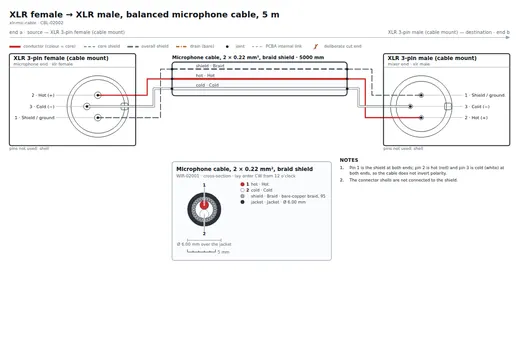

SchematicLaid out for you, with a legend and the stock cross-section.

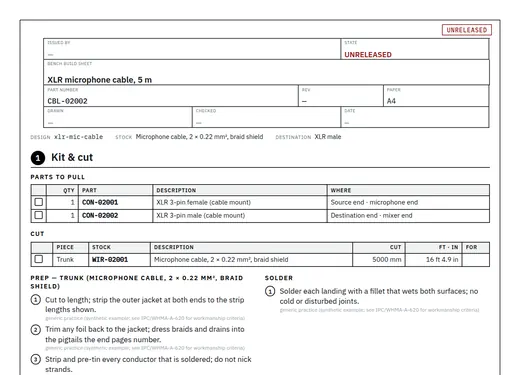

Build sheetThe bench flow, one stage per step.

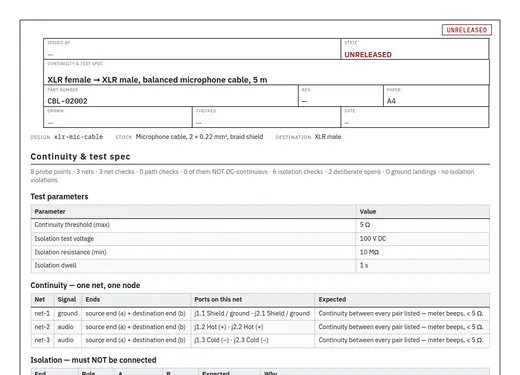

Continuity specWhat must connect, and what must stay isolated.

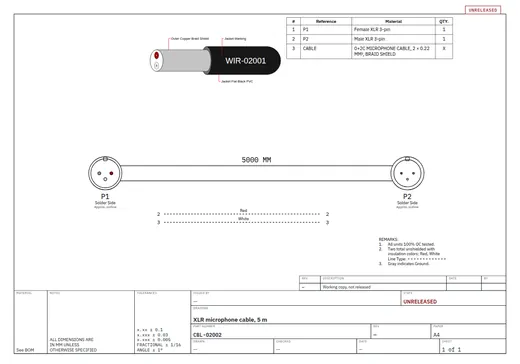

Drawing sheetBOM, outline and title block on a framed sheet.

Also a BOM, formboard, wire labels, CSV and XLSX exports, and WireViz import and export.

Run it

You need Docker and one file.

mkdir wirehub && cd wirehub
curl -fsSLO https://raw.githubusercontent.com/formless63/wirehub/main/compose.yaml
docker compose up -d
docker compose logs wirehub        # the first-run setup code

Open http://localhost:5183/setup and enter the setup code. Want your own ports, URL or database? Generate a compose.yaml and .env in your browser; nothing is sent anywhere.

Docs: quick start, your first design, concepts, reference
Module store: official catalog packs and how to add a store
Source on GitHub
